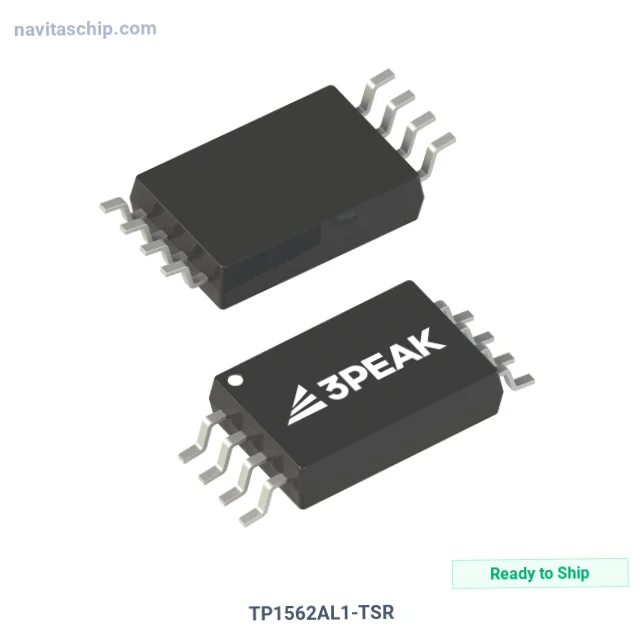

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 4.5V/µs |
| Gain Bandwidth Product | 6 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 600µA (x2 Channels) |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TP1562AL1-TSR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TP1562AL1-TSR is an Operational Amplifier (Op Amp) manufactured by 3PEAK. Integrated Circuit Operational Amplifier 2 Circuit in 8-Pin TSSOP Package, housed in a compact 8-TSSOP package.
In today's market, dual-version RoHS and leaded part availability management for industrial customers maintaining 1990s-era production lines can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Single Ended, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 8-TSSOP (0.173", 4.40mm Width)
- Device Package: 8-TSSOP
- RoHS Compliant
Applications
Perfect for:
- industrial automation
- consumer electronics
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- INA199, INA240 and MAX4376 current sense amplifier replacement for legacy battery management designs
- bridge sensor signal conditioning for strain gauge, pressure transducer, load cell and Wheatstone bridge readout
Why Choose NavitasChip for TP1562AL1-TSR?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the TP1562AL1-TSR and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for TP1562AL1-TSR, serving customers in Singapore, Vietnam, and worldwide.
TP1562AL1-TSR - Upload your BOM for fast pricing.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
