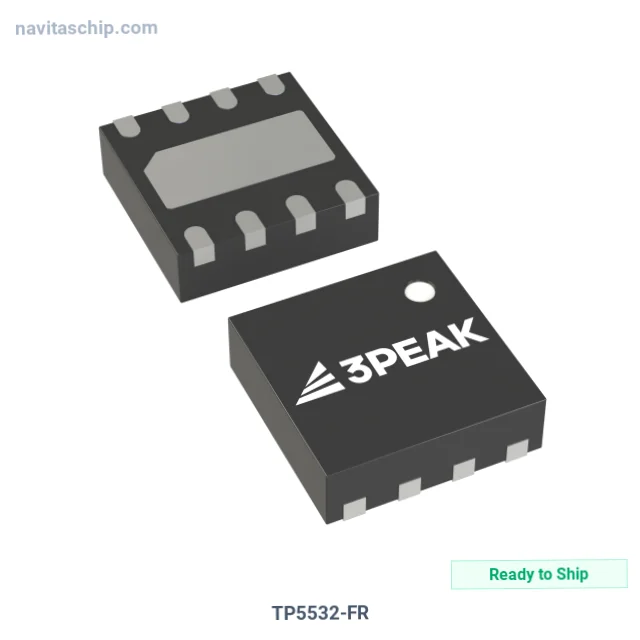

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Chopper (Zero-Drift) |
| Number of Circuits | 2 |
| Output Type | Push-Pull, Rail-to-Rail |
| Slew Rate | 0.16V/µs |
| Gain Bandwidth Product | 350 kHz |
| Current - Input Bias | 50 pA |
| Voltage - Input Offset | 1 µV |
| Current - Supply | 42µA (x2 Channels) |
| Current - Output / Channel | 60 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TP5532-FR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TP5532-FR is an Operational Amplifier (Op Amp) manufactured by 3PEAK. Integrated Circuit Chopper 2 Circuit in 8-Pin DFN Package, housed in a compact 8-DFN (2x2) package.
Struggling with excess inventory tying up working capital? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Push-Pull, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 8-UFDFN Exposed Pad
- Device Package: 8-DFN (2x2)
- RoHS Compliant
Applications
Ideal solution for:
- zero-drift, chopper-stabilized and auto-zero op amp for ultra-low-offset precision sensing
- current sense amplifier for high-side and bidirectional battery and motor current monitoring
- analog signal chain buffer between sensor front-ends and downstream ADC inputs for data acquisition
Why Choose NavitasChip for TP5532-FR?
NavitasChip offers cost-effective alternative to authorized distributors for the TP5532-FR and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of TP5532-FR for the Philippines and Thailand markets.
TP5532-FR - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
