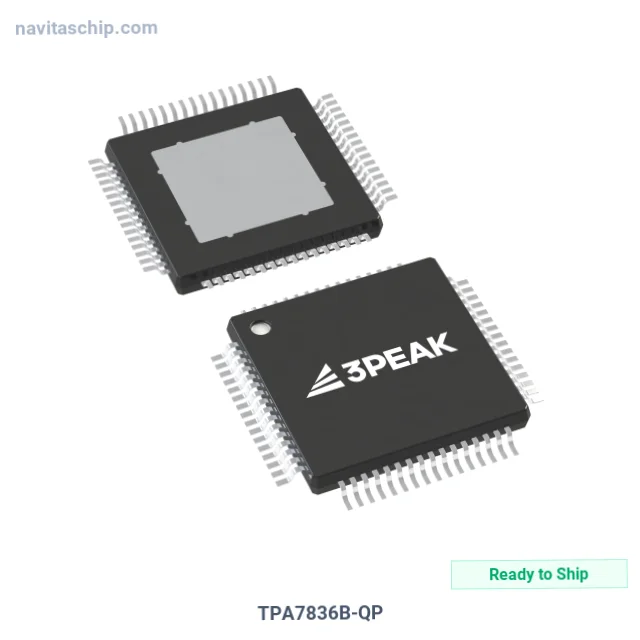

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | ADC, DAC |
| Number of Channels | 21 |
| Resolution (Bits) | 12 b |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.5V ~ 5.5V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TPA7836B-QP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPA7836B-QP is an Audio Codec and Special-Purpose Data Converter IC manufactured by 3PEAK. Integrated Circuit Digital-To-Analog Converter/analog-To-Digital Converter 12bit 21-Channel 64-Htqfp, housed in a compact 64-TQFP-EP (10x10) package, with 4.5V ~ 5.5V, 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V, 4.5V ~ 5.5V
- Channels: 21
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 64-TQFP Exposed Pad
- Device Package: 64-TQFP-EP (10x10)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
