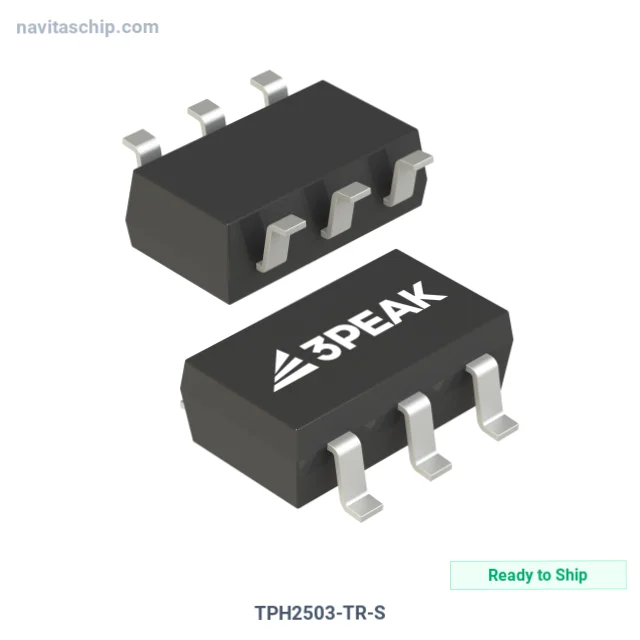

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Single Ended, Rail-to-Rail |
| Slew Rate | 200V/µs |
| Gain Bandwidth Product | 120 MHz |
| -3db Bandwidth | 90 MHz |
| Current - Input Bias | 3 pA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 6.5mA |
| Current - Output / Channel | 290 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TPH2503-TR-S Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPH2503-TR-S is an Operational Amplifier (Op Amp) manufactured by 3PEAK. Integrated Circuit Operational Amplifier 1 Circuit in 6-Pin SOT Package-23, housed in a compact SOT-23-6 package.
Key Technical Specifications
- Output Type: Single Ended, Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: SOT-23-6
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
