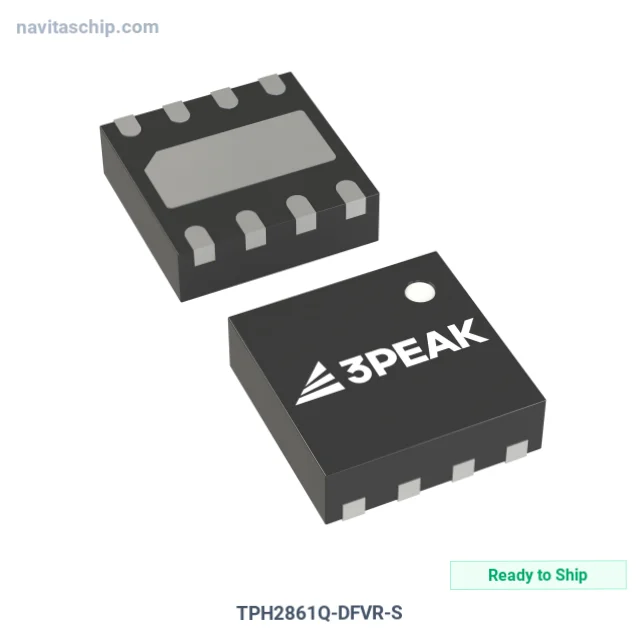

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Push-Pull |
| Slew Rate | 2700V/µs |
| Gain Bandwidth Product | 8 GHz |
| -3db Bandwidth | 2.3 GHz |
| Current - Input Bias | 23 µA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 19mA |
| Current - Output / Channel | 120 mA |
| Voltage - Supply Span (Min) | 3.3 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (2x2) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TPH2861Q-DFVR-S Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPH2861Q-DFVR-S is an Operational Amplifier (Op Amp) manufactured by 3PEAK. Integrated Circuit Operational Amplifier operating at 8GHz 1 Cir in 8-Pin DFN Package, housed in a compact 8-DFN (2x2) package.
Key Technical Specifications
- Output Type: Push-Pull
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-DFN (2x2)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
