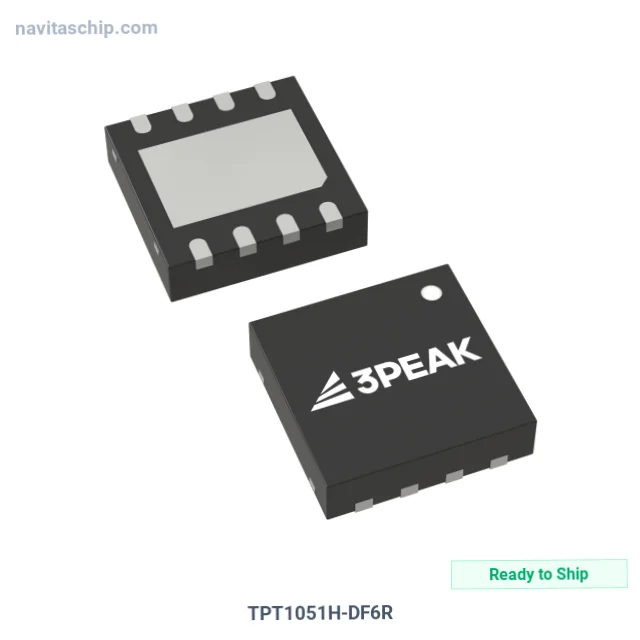

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | CANbus |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Receiver Hysteresis | 120 mV |
| Data Rate | 5Mbps |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TPT1051H-DF6R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPT1051H-DF6R is an Interface Driver Receiver Transceiver IC manufactured by 3PEAK. Integrated Circuit Transceiver Half 1/1 in 8-Pin DFN Package, housed in a compact 8-DFN (3x3) package, with 4.5V ~ 5.5V supply voltage.
Facing quarterly cost-down targets? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 8-VDFN Exposed Pad
- Device Package: 8-DFN (3x3)
- RoHS Compliant
Applications
Critical part of:
- consumer electronics
- industrial fieldbus and process control communication networks
- commercial vehicle telematics aftermarket modules
- building automation BACnet and KNX network communication
- LVDS and high-speed serial drivers for backplane and inter-board links
Why Choose NavitasChip for TPT1051H-DF6R?
NavitasChip offers cost-effective alternative to authorized distributors for the TPT1051H-DF6R and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Global supply network for TPT1051H-DF6R with distribution hubs in Hong Kong, Singapore, and Shenzhen.
TPT1051H-DF6R - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
