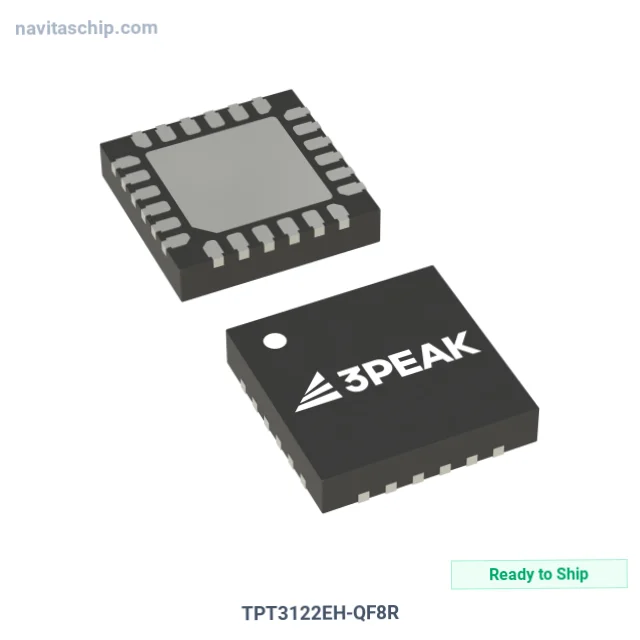

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | 3PEAK |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Receiver Hysteresis | 300 mV |
| Data Rate | 1Mbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-QFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | 3PEAK TPT3122EH-QF8R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TPT3122EH-QF8R is an Interface Driver Receiver Transceiver IC manufactured by 3PEAK. Integrated Circuit Transceiver 2/2 in 24-Pin QFN Package, housed in a compact 24-QFN (4x4) package, with 3V ~ 5.5V supply voltage.
In today's market, supply gaps during industrial fieldbus product lifecycle ramps can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Supply Voltage: 3V ~ 5.5V
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 24-VFQFN Exposed Pad
- Device Package: 24-QFN (4x4)
- RoHS Compliant
Applications
Essential component for:
- embedded systems
- consumer electronics
- commercial vehicle telematics aftermarket modules
- smart grid metering and substation communication
- LVDS and high-speed serial drivers for backplane and inter-board links
Why Choose NavitasChip for TPT3122EH-QF8R?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the TPT3122EH-QF8R and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
TPT3122EH-QF8R available for international procurement with multiple shipping origin options.
TPT3122EH-QF8R - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
