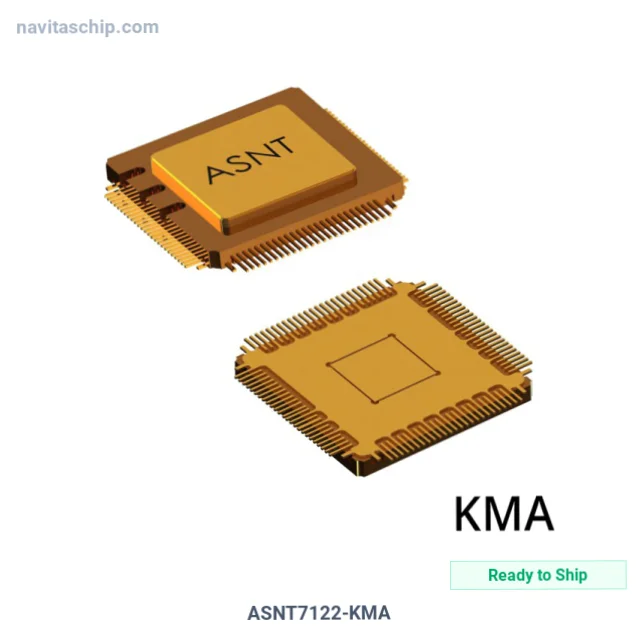

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | ADSANTEC |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 4 |
| Sampling Rate (Per Second) | 15G |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | LVDS - Parallel |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Reference Type | External |
| Voltage - Supply, Analog | 3.4V ~ 3.6V |
| Voltage - Supply, Digital | 3.4V ~ 3.6V |
| Operating Temperature | -25°C ~ 125°C |
| Supplier Device Package | 100-CQFP (13x13) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | ADSANTEC ASNT7122-KMA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ASNT7122-KMA is an Analog-to-Digital Converter (ADC) manufactured by ADSANTEC. 20gh 15gs 4-Bit Flash Memory Analog-To-Digital Converter W/ Phase Locked Loop, housed in a compact 100-CQFP (13x13) package.
Key Technical Specifications
- Operating Temperature: -25°C ~ 125°C
- Mounting: Surface Mount
- Package: 100-CFlatPack
- Device Package: 100-CQFP (13x13)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
