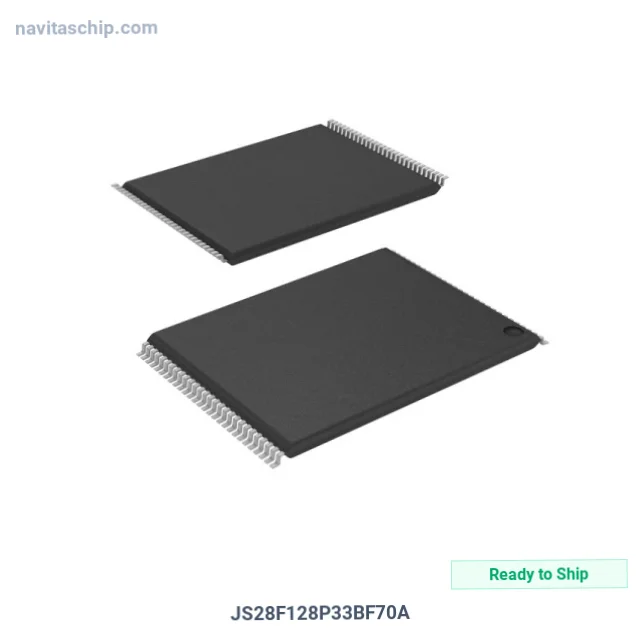

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | JS28F128P33BF70A |
| Manufacturer | Alliance Memory, Inc. |
| NavitasChip Part Number | NAVI-13543363 |
| Description | IC FLASH 128MBIT PARALLEL 56TSOP |
| Spec | 56-TFSOP (0.724", 18.40mm Width) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Memory ICs |
| Manufacturer | Alliance Memory, Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Obsolete |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 128Mbit |
| Memory Organization | 8M x 16 |
| Memory Interface | Parallel |
| Clock Frequency | 52 MHz |
| Write Cycle Time - Word, Page | 70ns |
| Access Time | 70 ns |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-TSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Alliance Memory, Inc. JS28F128P33BF70A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The JS28F128P33BF70A is a Memory IC manufactured by Alliance Memory, Inc. (Alliance). Integrated Circuit Flash Memory 128mbit Parallel in 56-Pin TSOP Package, housed in a compact 56-TSOP package, with 2.3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 56-TFSOP (0.724", 18.40mm Width)
- Device Package: 56-TSOP
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
