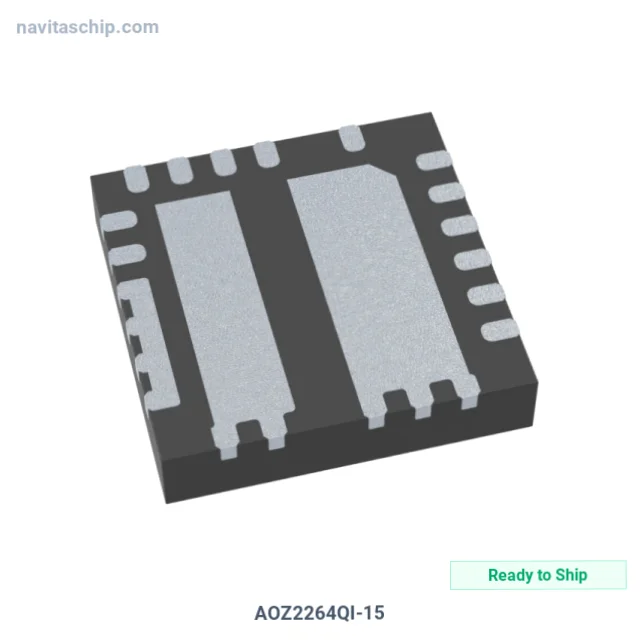

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AOZ2264QI-15 |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| NavitasChip Part Number | NAVI-7690233 |
| Description | IC REG BUCK ADJ 15A 23QFNB |
| Spec | 23-PowerTFQFN |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Voltage Regulators - DC DC Switching Regulators |
| Manufacturer | Alpha & Omega Semiconductor Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.7V |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 20.4V |
| Current - Output | 15A |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 23-QFNB (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Alpha & Omega Semiconductor Inc. AOZ2264QI-15 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AOZ2264QI-15 is a DC-DC Switching Voltage Regulator manufactured by Alpha & Omega Semiconductor Inc. (AOS). Integrated Circuit Regulator Buck Adjustable 15a 23qfnb, housed in a compact 23-QFNB (4x4) package.
Key Technical Specifications
- Output Type: Adjustable
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 23-PowerTFQFN
- Device Package: 23-QFNB (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
