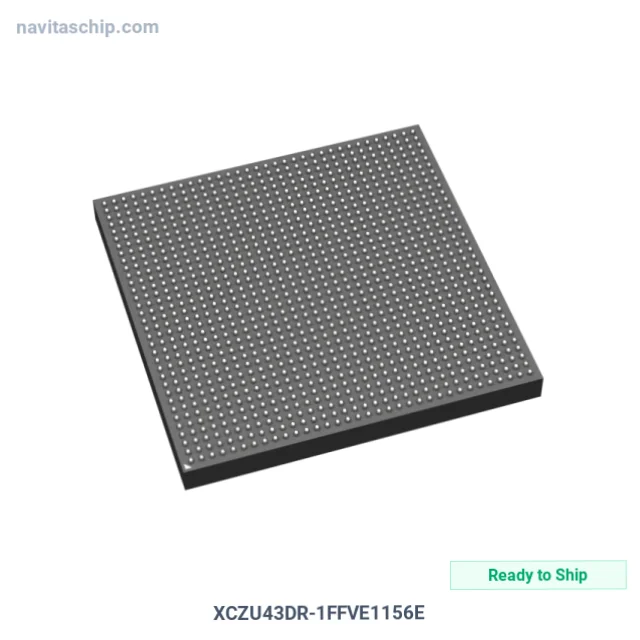

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | System On Chip (SoC) |
| Manufacturer | AMD |
| Package | Tray |
| Product Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| RAM Size | 256KB |
| Peripherals | DDR, DMA, PCIe |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 500MHz, 1.2GHz |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Supplier Device Package | 1156-FCBGA (35x35) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | AMD XCZU43DR-1FFVE1156E Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XCZU43DR-1FFVE1156E is a System-on-Chip (SoC) with Programmable Logic manufactured by AMD. Integrated Circuit Zup Rfsoc A53 Field Programmable Gate Array in 1156-Pin BGA Package, housed in a compact 1156-FCBGA (35x35) package. Originally developed by Xilinx, this component continues to be fully supported. Extended temperature range version (-40°C to +85°C).
Facing discontinued SmartFusion2 series requiring drop-in replacements for installed automation? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: 0°C ~ 100°C (TJ)
- Package: 1156-BBGA, FCBGA
- Device Package: 1156-FCBGA (35x35)
- RoHS Compliant
Applications
Critical part of:
- professional equipment
- video processing and broadcast infrastructure equipment
- professional imaging and ultrasound beamforming systems
- heterogeneous compute combining ARM Cortex-A processors and programmable logic fabric
- reconfigurable acceleration for evolving compute workloads
Why Choose NavitasChip for XCZU43DR-1FFVE1156E?
NavitasChip offers competitive market pricing for the XCZU43DR-1FFVE1156E and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of XCZU43DR-1FFVE1156E for the Malaysia and India markets.
XCZU43DR-1FFVE1156E - Request a quote today.
