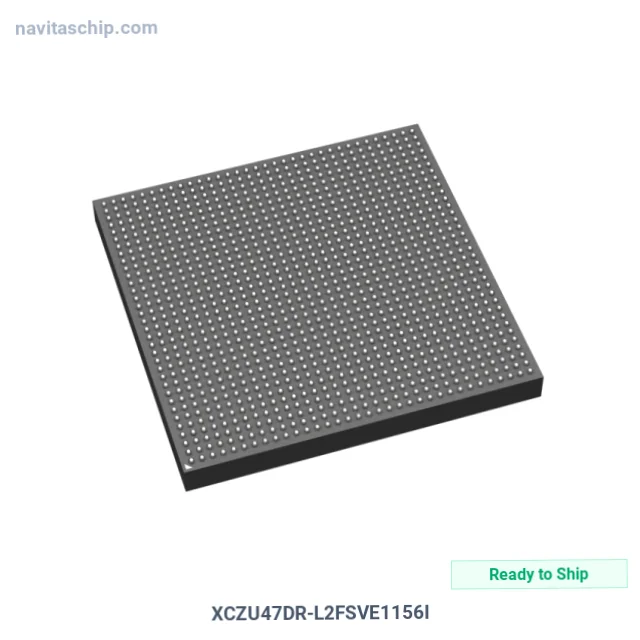

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | System On Chip (SoC) |
| Manufacturer | AMD |
| Package | Tray |
| Product Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ |
| RAM Size | 256KB |
| Peripherals | DMA, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 533MHz, 1.333GHz |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 930K+ Logic Cells |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Supplier Device Package | 1156-FCBGA (35x35) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | AMD XCZU47DR-L2FSVE1156I Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XCZU47DR-L2FSVE1156I is a System-on-Chip (SoC) with Programmable Logic manufactured by AMD. Integrated Circuit Zup Rfsoc A53 Field Programmable Gate Array Low Power in 1156-Pin BGA Package, housed in a compact 1156-FCBGA (35x35) package. Originally developed by Xilinx, this component continues to be fully supported. Industrial temperature range (-40°C to +85°C).
In today's market, discontinued SmartFusion2 series requiring drop-in replacements for installed automation can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 100°C (TJ)
- Package: 1156-BBGA, FCBGA
- Device Package: 1156-FCBGA (35x35)
- RoHS Compliant
Applications
Commonly utilized in:
- video processing and broadcast infrastructure equipment
- professional imaging and ultrasound beamforming systems
- hardware prototyping for ASIC validation and FPGA emulation
Why Choose NavitasChip for XCZU47DR-L2FSVE1156I?
NavitasChip offers cost-effective alternative to authorized distributors for the XCZU47DR-L2FSVE1156I and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
XCZU47DR-L2FSVE1156I - Upload your BOM for fast pricing.
