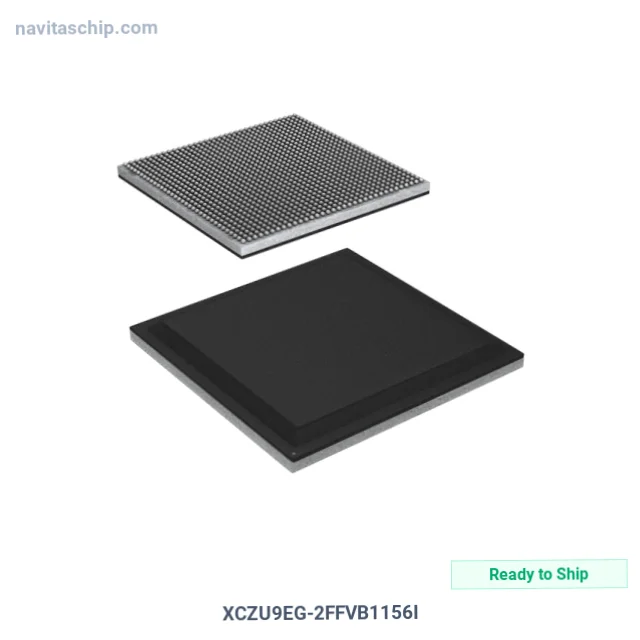

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | System On Chip (SoC) |
| Manufacturer | AMD |
| Package | Tray |
| Product Status | Active |
| Architecture | MCU, FPGA |
| Core Processor | Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, ARM Mali™-400 MP2 |
| RAM Size | 256KB |
| Peripherals | DMA, WDT |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Speed | 533MHz, 600MHz, 1.3GHz |
| Primary Attributes | Zynq®UltraScale+™ FPGA, 599K+ Logic Cells |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Supplier Device Package | 1156-FCBGA (35x35) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | AMD XCZU9EG-2FFVB1156I Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The XCZU9EG-2FFVB1156I is a System-on-Chip (SoC) with Programmable Logic manufactured by AMD. Integrated Circuit System On Chip Cortex-A53 in 1156-Pin BGA Package, housed in a compact 1156-FCBGA (35x35) package. Originally developed by Xilinx.
Key Technical Specifications
- Operating Temperature: -40°C ~ 100°C (TJ)
- Package: 1156-BBGA, FCBGA
- Device Package: 1156-FCBGA (35x35)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
