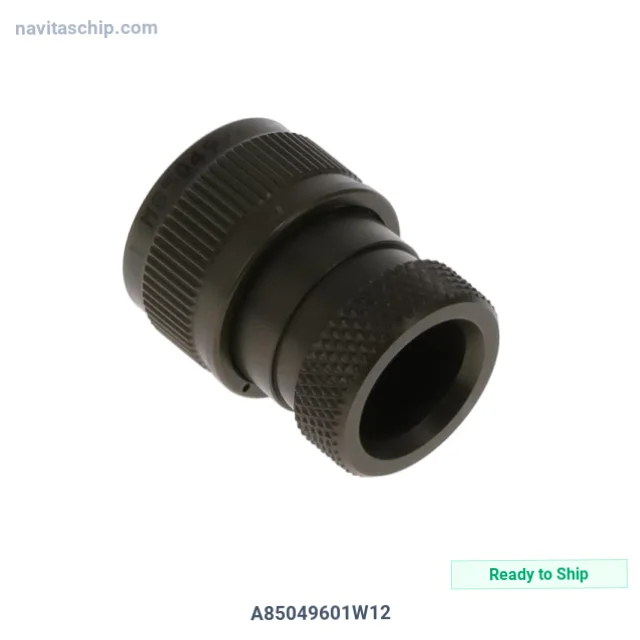

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | A85049601W12 |
| Manufacturer | Amphenol PCD |
| NavitasChip Part Number | NAVI-16182943 |
| Description | CONN BACKSHELL ADPT SZ7 12 OLIVE |
| Spec | - |
| Package | Bag |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | Amphenol PCD |
| Package | Bag |
| Product Status | Active |
| Type | Backshell, Heat Shrink Adapter |
| Cable Opening | 0.490" (12.45mm) |
| Diameter - Outside | 0.860" (21.84mm) |
| Shell Size - Insert | 7, 12 |
| Cable Exit | 180° |
| Primary Material | Metal |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Shielding | Unshielded |
| Color | Olive Drab |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Amphenol PCD A85049601W12 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The A85049601W12 is a Circular Connector manufactured by Amphenol PCD (Amphenol-PCD). Connector Backshell Adpt Sz7 12 Olive.
In today's market, minimum order quantity requirements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Package: Bag
- Industrial-grade quality
- RoHS compliant
- Datasheet available
Applications
Widely adopted for:
- industrial automation
- marine equipment
- test and measurement
- harsh environment systems
- marine applications
Why Choose NavitasChip for A85049601W12?
NavitasChip offers cost-effective alternative to authorized distributors for the A85049601W12 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Bag. Supplied in industry-standard protective packaging (Bag, Box, or Tray) ensuring mechanical integrity.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for A85049601W12 to optimize delivery time and customs clearance.
A85049601W12 - Inquire for bulk discount.
