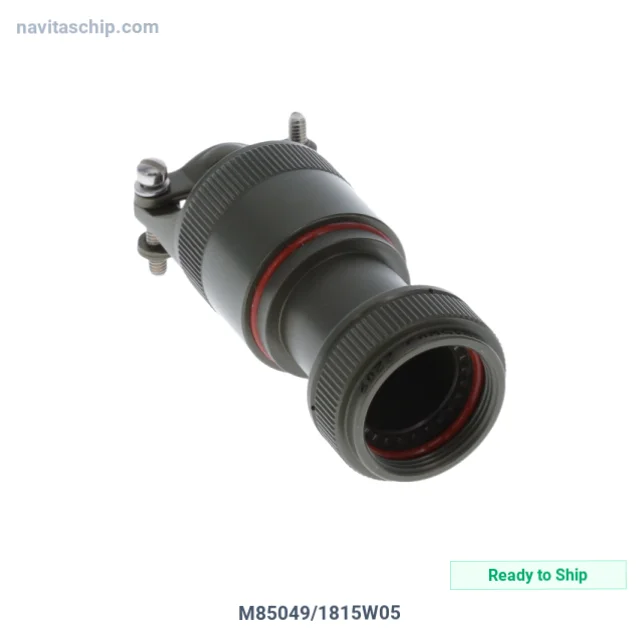

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | M85049/1815W05 |
| Manufacturer | Amphenol PCD |
| NavitasChip Part Number | NAVI-5623712 |
| Description | CONN BACKSHLL W/CLMP SZ15 D OLIV |
| Spec | - |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | Amphenol PCD |
| Package | Bulk |
| Product Status | Active |
| Type | Backshell, Cable Clamp |
| Cable Opening | 0.500" ~ 0.625" (12.70mm ~ 15.88mm) |
| Diameter - Outside | 1.150" (29.21mm) |
| Shell Size - Insert | 15, D |
| Cable Exit | 180° |
| Material | Aluminum Alloy |
| Plating | Cadmium |
| Shielding | Shielded |
| Color | Olive Drab |
| Features | Clamp Screws |
| Ingress Protection | Environment Resistant |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Amphenol PCD M85049/1815W05 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The M85049/1815W05 is a Circular Connector manufactured by Amphenol PCD (Amphenol-PCD). Backshll with Clamp, Size 15 D Oliv.
Packaging: Factory Bulk · industry-standard protective packaging.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
