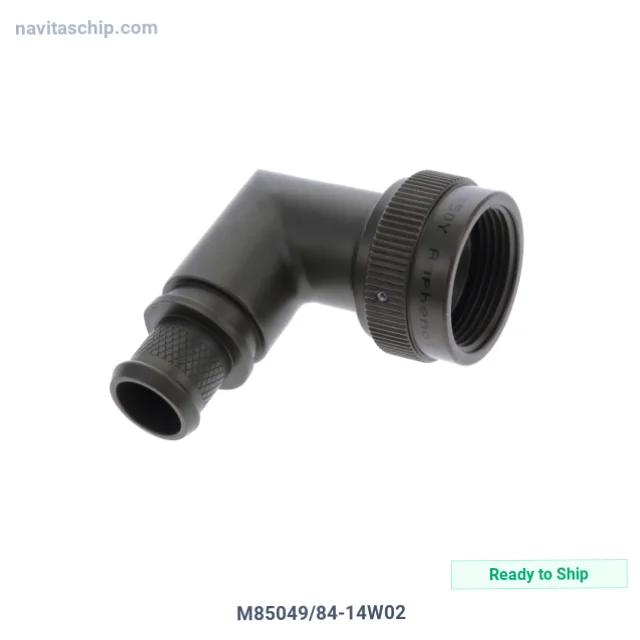

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | M85049/84-14W02 |
| Manufacturer | Amphenol PCD |
| NavitasChip Part Number | NAVI-13535978 |
| Description | CONN BACKSH BANDING SZ14 7/8-20 |
| Spec | - |
| Package | Bag |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | Amphenol PCD |
| Package | Bag |
| Product Status | Active |
| Type | Backshell, Banding |
| Cable Opening | 0.438" (11.12mm) |
| Diameter - Outside | 1.260" (32.00mm) |
| Shell Size - Insert | 14 |
| Thread Size | 7/8-20 UNEF |
| Cable Exit | 90° |
| Material | Aluminum |
| Plating | Cadmium Nickel |
| Shielding | Unshielded |
| Color | Olive |
| Features | Detented |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Amphenol PCD M85049/84-14W02 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The M85049/84-14W02 is a Circular Connector manufactured by Amphenol PCD (Amphenol-PCD). Backshell Banding, Size 14, 7/8-20.
Packaging: Factory Bag · industry-standard protective packaging.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
