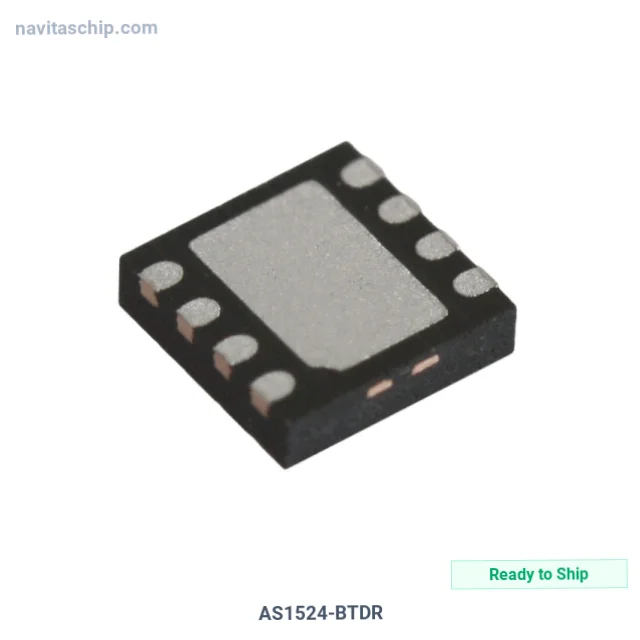

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AS1524-BTDR |
| Manufacturer | ams-OSRAM USA INC. |
| NavitasChip Part Number | NAVI-2334728 |
| Description | IC ADC 12BIT SAR 8TDFN |
| Spec | 8-WDFN Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | ams-OSRAM USA INC. |
| Package | Tray |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 150k |
| Number of Inputs | 1 |
| Input Type | Differential, Pseudo-Differential |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 8-TDFN (3x3) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | ams-OSRAM USA INC. AS1524-BTDR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AS1524-BTDR is an Analog-to-Digital Converter (ADC) manufactured by ams-OSRAM USA INC. (ams-OSRAM). Integrated Circuit Analog-To-Digital Converter 12bit Sar 8tdfn, housed in a compact 8-TDFN (3x3) package.
Facing long factory lead times exceeding 40-50 weeks on precision data converters? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-WDFN Exposed Pad
- Device Package: 8-TDFN (3x3)
Applications
Ideal solution for:
- industrial automation
- flash and subranging ADC for ultra-high-speed waveform digitization
- differential input ADC with on-chip reference and PGA for low-level signals
- megasample-per-second (MSPS) sampling for communication and imaging front-ends
- test and measurement instrumentation and bench data acquisition equipment
Why Choose NavitasChip for AS1524-BTDR?
NavitasChip offers wholesale pricing advantages for the AS1524-BTDR and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of AS1524-BTDR for the Italy and France markets.
AS1524-BTDR - Inquire for bulk discount.
