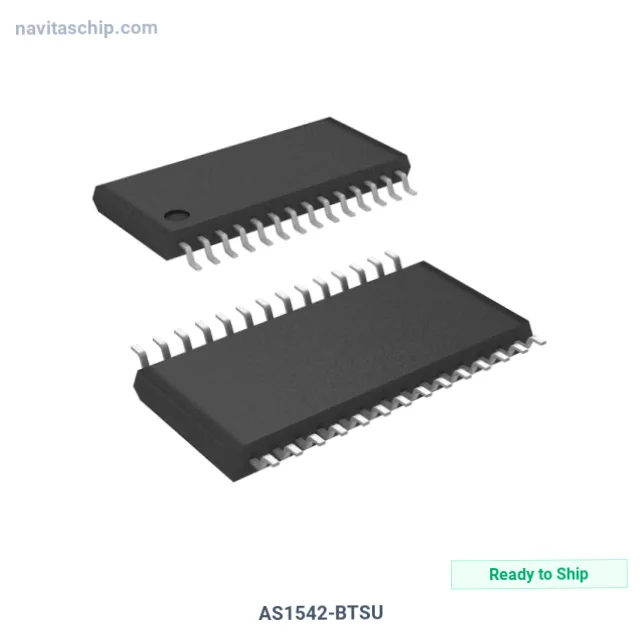

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AS1542-BTSU |
| Manufacturer | ams-OSRAM USA INC. |
| NavitasChip Part Number | NAVI-2747473 |
| Description | IC ADC 12BIT SAR 28TSSOP |
| Spec | 28-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | ams-OSRAM USA INC. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | ams-OSRAM USA INC. AS1542-BTSU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AS1542-BTSU is an Analog-to-Digital Converter (ADC) manufactured by ams-OSRAM USA INC. (ams-OSRAM). Integrated Circuit Analog-To-Digital Converter 12bit Sar in 28-Pin TSSOP Package, housed in a compact 28-TSSOP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
