| Manufacturer Product Number | 5962-8770201RX |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3904312 |
| Description | IC DAC 8BIT DUAL MULT 20CDIP |
| Spec | 20-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 2µs |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| INL/DNL (LSB) | ±2 (Max), ±4 (Max) |
| Architecture | R-2R |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 20-CERDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-8770201RX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

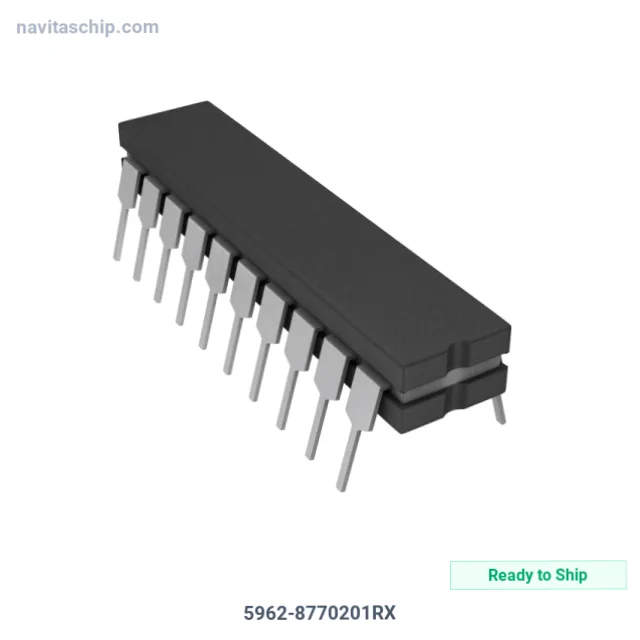

The 5962-8770201RX is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 8bit Dual Mult 20cdip, housed in a compact 20-CERDIP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 20-CDIP (0.300", 7.62mm)
- Device Package: 20-CERDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
