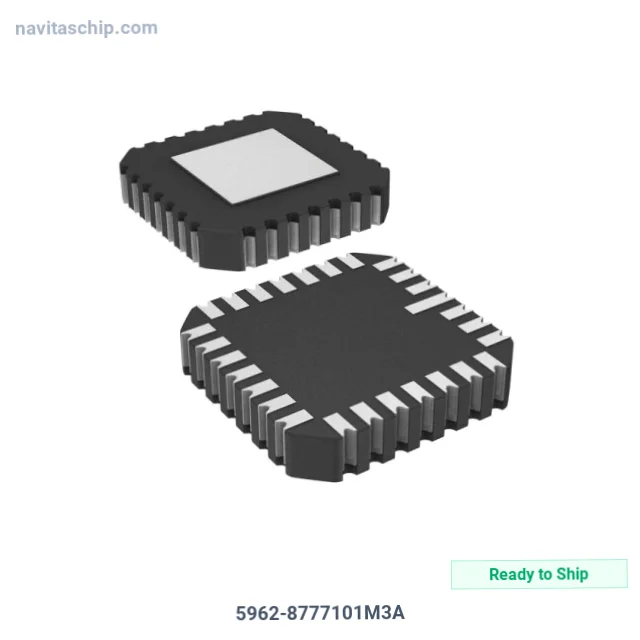

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-8777101M3A |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3904327 |
| Description | IC OPAMP GP 4 CIRCUIT 28LCC |
| Spec | 28-LCC |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | Differential |
| Slew Rate | 0.15V/µs |
| Gain Bandwidth Product | 500 kHz |
| Current - Input Bias | 750 pA |
| Voltage - Input Offset | 40 µV |
| Current - Supply | 600µA (x4 Channels) |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-LCC (11.43x11.43) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-8777101M3A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-8777101M3A is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier General Purpose 4 Circuit 28lcc, housed in a compact 28-LCC (11.43x11.43) package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 28-LCC
- Device Package: 28-LCC (11.43x11.43)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
