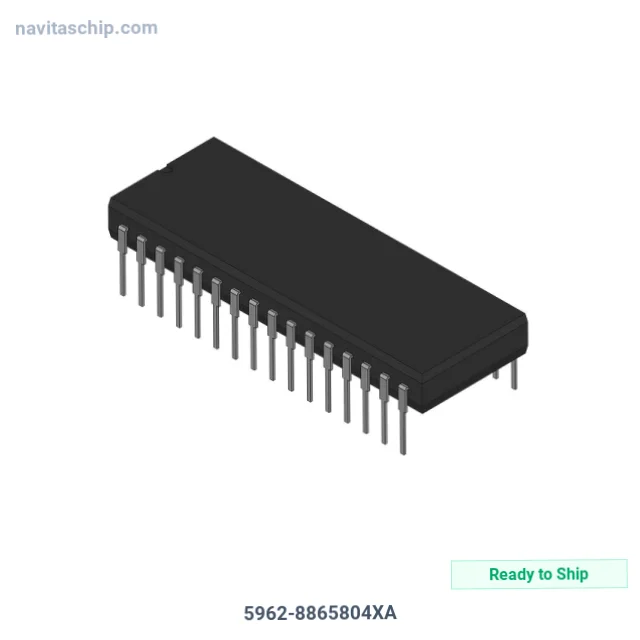

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-8865804XA |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12123073 |
| Description | 12-BIT SAR ADC (AD578ZT) |
| Spec | 32-CDIP (0.910", 23.12mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel, Serial |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, ±13.5V ~ 16.5V |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 32-SBDIP-H |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-8865804XA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-8865804XA is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 12-Bit Sar Analog-To-Digital Converter, housed in a compact 32-SBDIP-H package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 32-CDIP (0.910", 23.12mm)
- Device Package: 32-SBDIP-H
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
