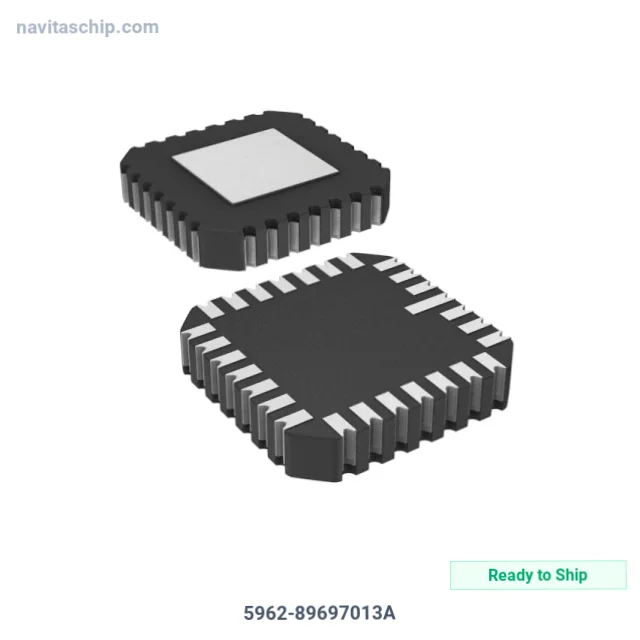

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-89697013A |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3904391 |
| Description | IC DAC 16BIT LC2MOS VOUT 28CLCC |
| Spec | 28-LCC |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 9µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±11.4V ~ 15.75V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Architecture | String DAC |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 28-LCC (11.43x11.43) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-89697013A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-89697013A is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 16bit Lc2mos Vout 28clcc, housed in a compact 28-LCC (11.43x11.43) package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 28-LCC
- Device Package: 28-LCC (11.43x11.43)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
