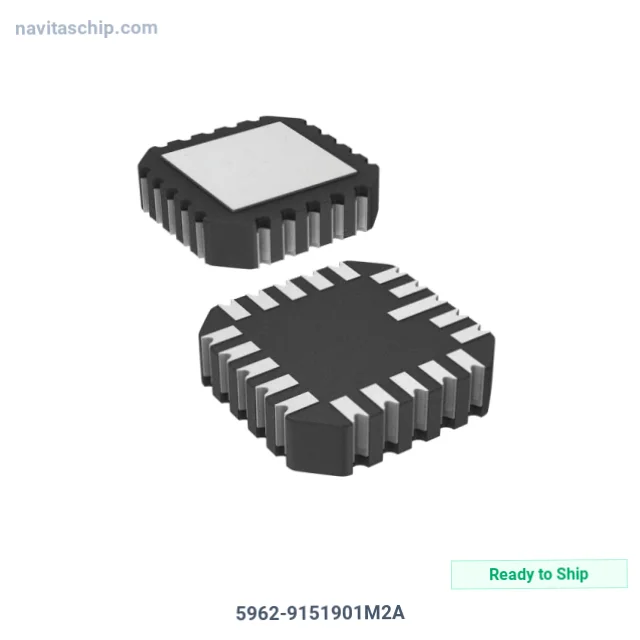

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-9151901M2A |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3904420 |
| Description | IC OPAMP JFET 2 CIRCUIT 20CLCC |
| Spec | 20-CLCC |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | J-FET |
| Number of Circuits | 2 |
| Slew Rate | 22V/µs |
| Gain Bandwidth Product | 4.7 MHz |
| Current - Input Bias | 30 pA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 5.6mA |
| Current - Output / Channel | 36 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Grade | Military |
| Qualification | MIL-STD-883 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-CLCC (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-9151901M2A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-9151901M2A is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier JFET 2 Circuit 20clcc, housed in a compact 20-CLCC (9x9) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-CLCC
- Device Package: 20-CLCC (9x9)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
