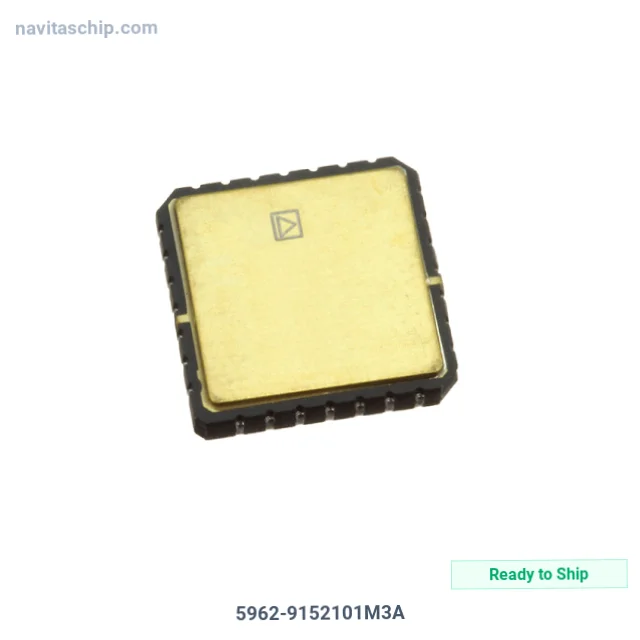

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-9152101M3A |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3904422 |
| Description | IC DAS 12BIT 116K 28LCC |
| Spec | 28-CLCC |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 116k |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-LCC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-9152101M3A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-9152101M3A is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Das 12bit 116k 28lcc, housed in a compact 28-LCC package, with ±5V supply voltage.
Key Technical Specifications
- Supply Voltage: ±5V
- Channels: 4
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 28-CLCC
- Device Package: 28-LCC
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
