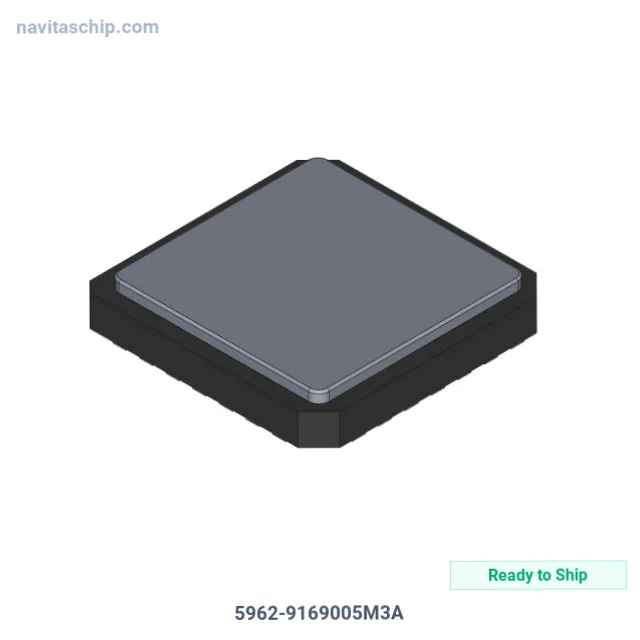

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-9169005M3A |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12100061 |
| Description | 12-BIT ADC (AD74BTE) |
| Spec | 28-CLCC |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of Inputs | 12 |
| Data Interface | Parallel |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | -16.5V ~ -11.4V, 11.4V ~ 16.5V |
| Voltage - Supply, Digital | -16.5V ~ -11.4V, 11.4V ~ 16.5V |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 28-CLCC (11.43x11.43) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. 5962-9169005M3A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-9169005M3A is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 12-Bit Analog-To-Digital Converter, housed in a compact 28-CLCC (11.43x11.43) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 28-CLCC
- Device Package: 28-CLCC (11.43x11.43)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
