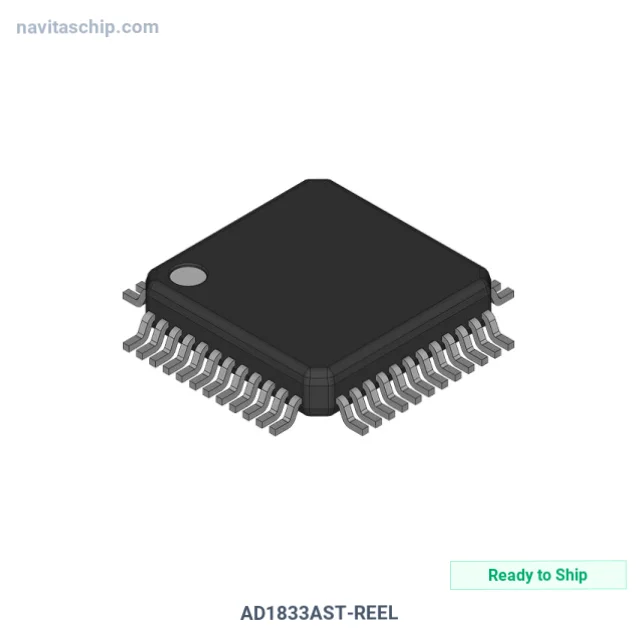

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD1833AST-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12106826 |
| Description | MULTI-CH 24-BIT SIGMA-DELTA DAC |
| Spec | 48-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | DAC, Audio |
| Number of Channels | 6 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 192kHz |
| Data Interface | I2S, Serial, SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.5V ~ 5.5V, 3.3V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD1833AST-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD1833AST-REEL is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Multi-Ch 24-Bit Sigma-Delta Digital-To-Analog Converter, housed in a compact 48-LQFP (7x7) package, with 4.5V ~ 5.5V, 3.3V, 4.5V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V, 3.3V, 4.5V ~ 5.5V
- Channels: 6
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
