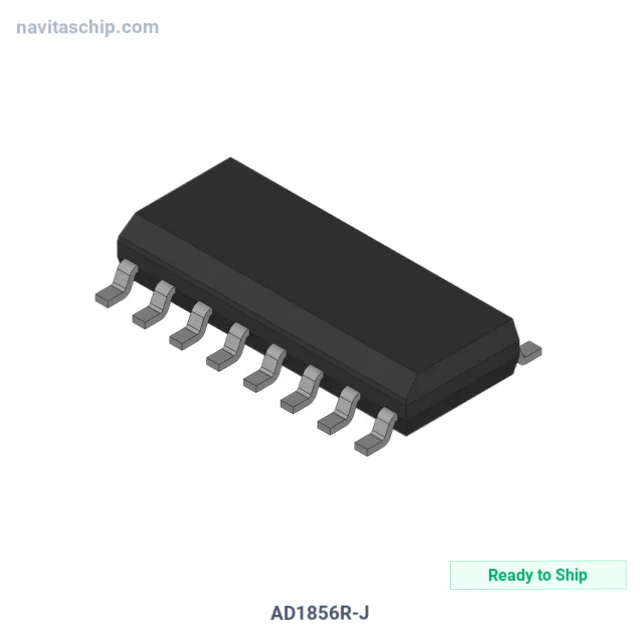

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD1856R-J |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12106437 |
| Description | 16-BIT PCM AUDIO DAC |
| Spec | 16-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | DAC, Audio |
| Number of Channels | 1 |
| Resolution (Bits) | 16 b |
| Data Interface | Serial |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | 4.75V ~ 13.2V, 4.75V ~ 13.2V |
| Operating Temperature | -25°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD1856R-J Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD1856R-J is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). 16-Bit Pcm Audio Digital-To-Analog Converter, housed in a compact 16-SOIC package, with 4.75V ~ 13.2V, 4.75V ~ 13.2V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 13.2V, 4.75V ~ 13.2V
- Channels: 1
- Operating Temperature: -25°C ~ 70°C
- Mounting: Surface Mount
- Package: 16-SOIC (0.295", 7.50mm Width)
- Device Package: 16-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
