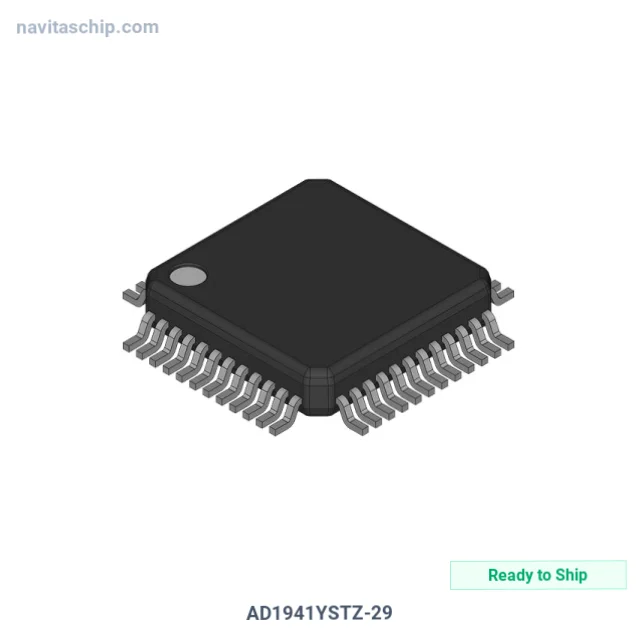

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD1941YSTZ-29 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12108883 |
| Description | SIGMADSP 28-BIT AUDIO PROCESSOR |
| Spec | 48-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | Audio |
| Number of Channels | 4 |
| Resolution (Bits) | 28 b |
| Sampling Rate (Per Second) | 192k |
| Data Interface | I2C |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.5V ~ 2.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD1941YSTZ-29 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD1941YSTZ-29 is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Sigmadsp 28-Bit Audio Processor, housed in a compact 48-LQFP (7x7) package, with 2.5V ~ 2.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.5V ~ 2.5V
- Channels: 4
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
