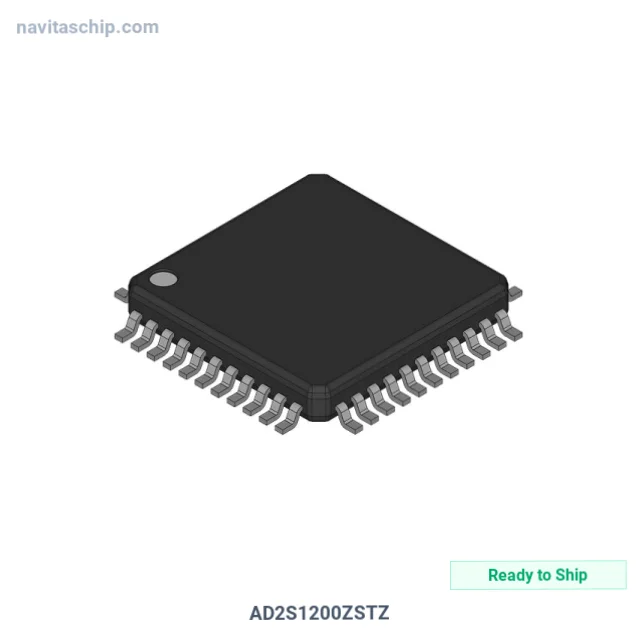

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD2S1200ZSTZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12112474 |
| Description | 12-BIT R/D CONVERTER |
| Spec | 44-LQFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | R/D Converter |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.75 V ~ 5.25 V, 4.75V ~ 5.25 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-LQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD2S1200ZSTZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD2S1200ZSTZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). 12-Bit R/d Converter, housed in a compact 44-LQFP (10x10) package, with 4.75 V ~ 5.25 V, 4.75V ~ 5.25 V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75 V ~ 5.25 V, 4.75V ~ 5.25 V
- Channels: 2
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 44-LQFP
- Device Package: 44-LQFP (10x10)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
