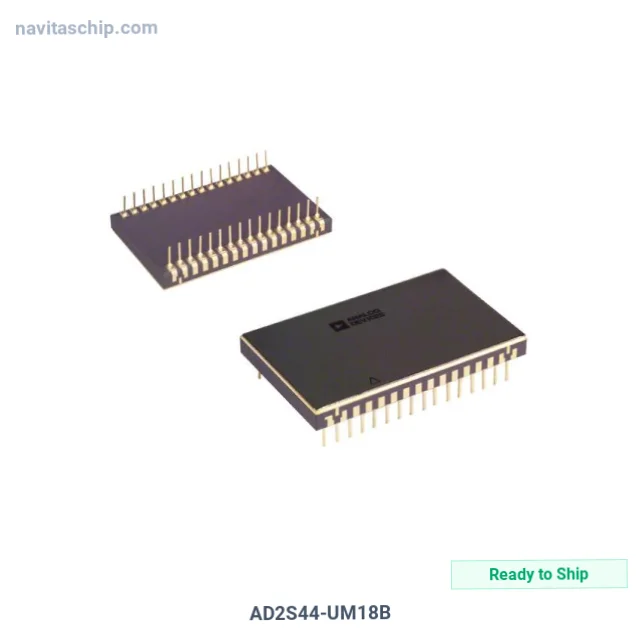

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD2S44-UM18B |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-617098 |
| Description | IC R/D CONVERTER 14BIT 32BBDIP-H |
| Spec | 32-CDIP (0.910", 23.12mm) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Obsolete |
| Type | R/D Converter |
| Number of Channels | 2 |
| Resolution (Bits) | 14 b |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±15V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 32-BBDIP-H |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD2S44-UM18B Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD2S44-UM18B is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit R/d Converter 14bit 32bbdip-H, housed in a compact 32-BBDIP-H package, with ±15V supply voltage.
Key Technical Specifications
- Supply Voltage: ±15V
- Channels: 2
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 32-CDIP (0.910", 23.12mm)
- Device Package: 32-BBDIP-H
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
