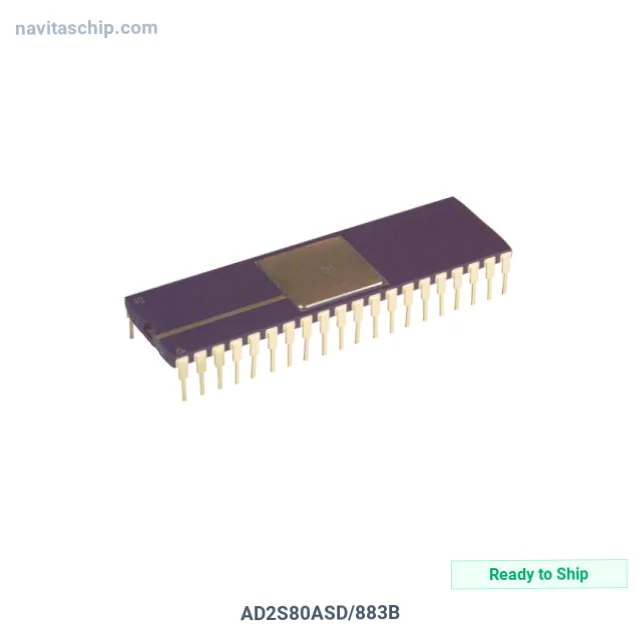

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD2S80ASD/883B |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3904483 |
| Description | IC R/D CONV 10/12/14/16B 40SBDIP |
| Spec | 40-CDIP (0.600", 15.24mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Type | R/D Converter |
| Number of Channels | 2 |
| Resolution (Bits) | 10, 12, 14, 16 b |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±10.8V ~ 13.2V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 40-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD2S80ASD/883B Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD2S80ASD/883B is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit R/d Converter 10/12/14/16b 40sbdip, housed in a compact 40-CDIP package, with ±10.8V ~ 13.2V supply voltage.
Key Technical Specifications
- Supply Voltage: ±10.8V ~ 13.2V
- Channels: 2
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 40-CDIP (0.600", 15.24mm)
- Device Package: 40-CDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
