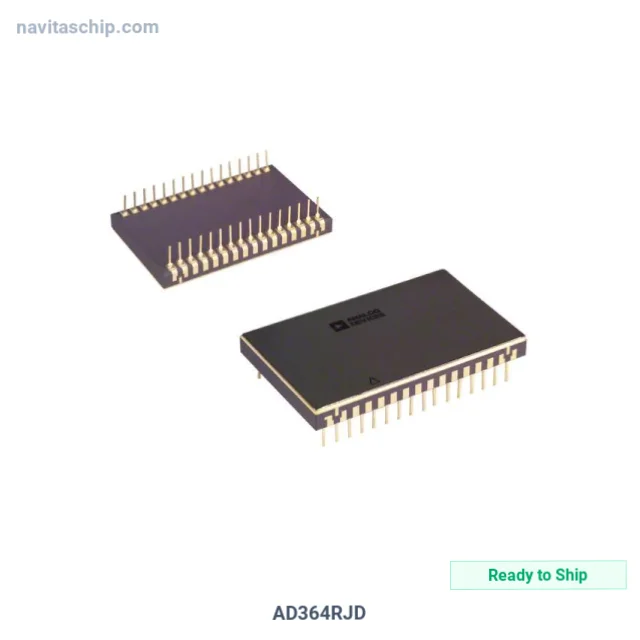

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD364RJD |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-617118 |
| Description | IC DAS/ADC 12B 20K 28CDIP/32CDIP |
| Spec | 32-CDIP (0.910", 23.12mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 16 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 20k |
| Data Interface | Parallel |
| Voltage Supply Source | Analog and Digital, Dual ± |
| Voltage - Supply | ±16V, 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 32-BBDIP-H |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD364RJD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD364RJD is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Das/analog-To-Digital Converter 12b 20k 28cdip/32cdip, housed in a compact 32-BBDIP-H package, with ±16V, 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: ±16V, 5.5V
- Channels: 16
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 32-CDIP (0.910", 23.12mm)
- Device Package: 32-BBDIP-H
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
