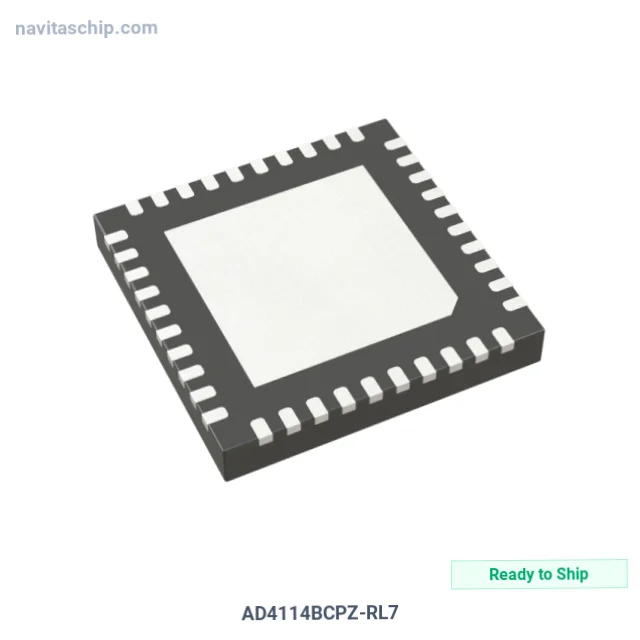

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD4114BCPZ-RL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-13152103 |
| Description | IC ADC 24BIT SIGMA-DELTA 40LFCSP |
| Spec | 40-VFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 31.25k |
| Number of Inputs | 8, 16 |
| Input Type | Differential, Single Ended |
| Data Interface | DSP, MICROWIRE™, QSPI™, and SPI™ |
| Configuration | MUX-ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 3V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD4114BCPZ-RL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD4114BCPZ-RL7 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 24bit Sigma-Delta in 40-Pin Csp Package, housed in a compact 40-LFCSP-VQ (6x6) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad, CSP
- Device Package: 40-LFCSP-VQ (6x6)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
