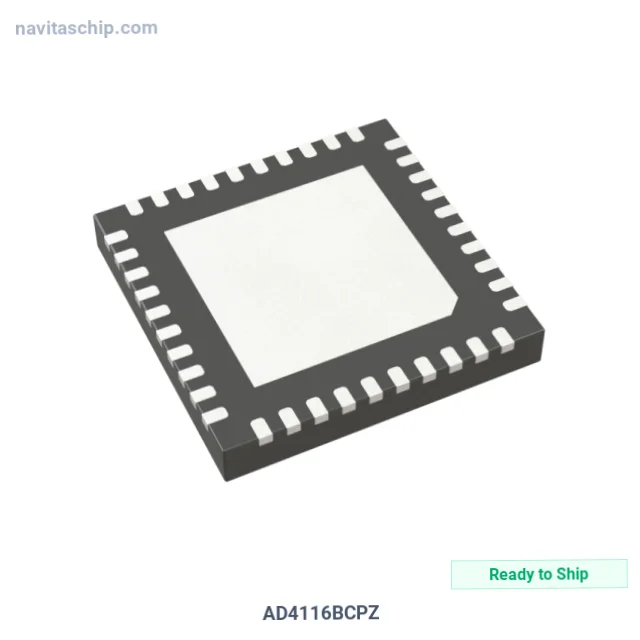

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD4116BCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-16123988 |
| Description | 125KSPS 11 CHL SD ADC +/-10V, 10 |
| Spec | 40-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 62.5k |
| Input Type | Differential, Single Ended |
| Data Interface | DSP, Microwire, QSPI, SPI |
| Configuration | MUX-ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD4116BCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD4116BCPZ is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 125ksps 11 Chl Sd Analog-To-Digital Converter +/-10V Supply, housed in a compact 40-LFCSP-VQ (6x6) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad, CSP
- Device Package: 40-LFCSP-VQ (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
