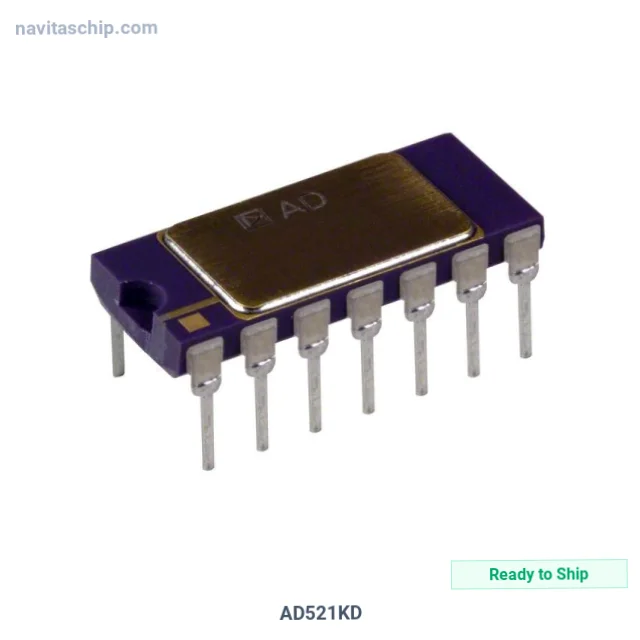

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD521KD |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11551081 |
| Description | IC AMP INST 40MHZ PREC LN 14CDIP |
| Spec | 14-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Slew Rate | 10V/µs |
| -3db Bandwidth | 2 MHz |
| Current - Input Bias | 40 nA |
| Voltage - Input Offset | 1.5 mV |
| Current - Supply | 5mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 14-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD521KD Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD521KD is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Amplifier Inst operating at 40MHz Precision Ln 14cdip, housed in a compact 14-CDIP package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Through Hole
- Package: 14-CDIP (0.300", 7.62mm)
- Device Package: 14-CDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
