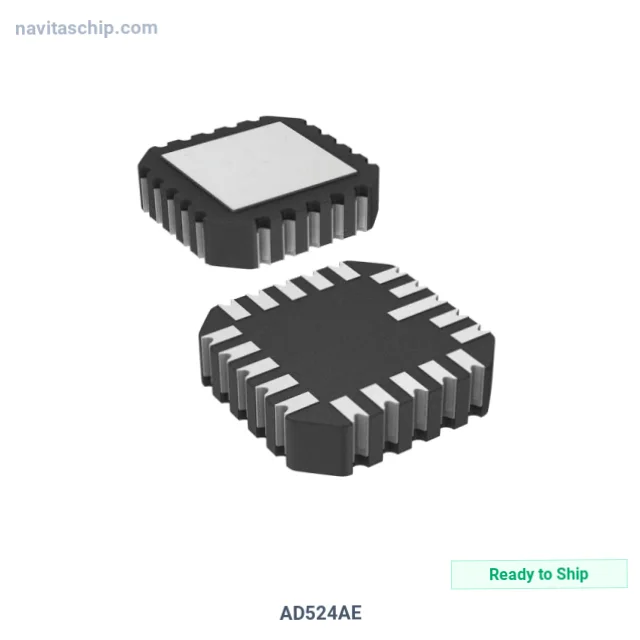

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD524AE |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-617336 |
| Description | IC INST AMP 1 CIRCUIT 20CLCC |
| Spec | 20-CLCC |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Slew Rate | 5V/µs |
| Gain Bandwidth Product | 1 MHz |
| -3db Bandwidth | 1 MHz |
| Current - Input Bias | 50 nA |
| Voltage - Input Offset | 250 µV |
| Current - Supply | 3.5mA |
| Voltage - Supply Span (Min) | 12 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-CLCC (8.89x8.89) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD524AE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD524AE is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 1 Circuit 20clcc, housed in a compact 20-CLCC (8.89x8.89) package.
Key Technical Specifications
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-CLCC
- Device Package: 20-CLCC (8.89x8.89)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
