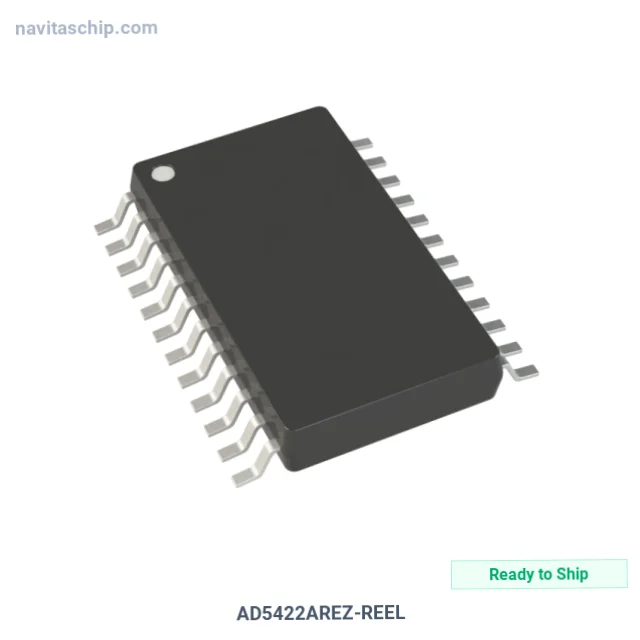

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD5422AREZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2261002 |
| Description | IC DAC 16BIT V OR A-OUT 24TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Number of D/A Converters | 1 |
| Settling Time | 25µs (V), 40µs (A) (Typ) |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 10.8V ~ 40V, -3V ~ 26.4V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | -, ±1.3 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 24-TSSOP-EP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD5422AREZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD5422AREZ-REEL is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 16bit V or A-Out in 24-Pin TSSOP Package, housed in a compact 24-TSSOP-EP package.
Key Technical Specifications
- Output Type: Voltage or Current - Buffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
- Device Package: 24-TSSOP-EP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
