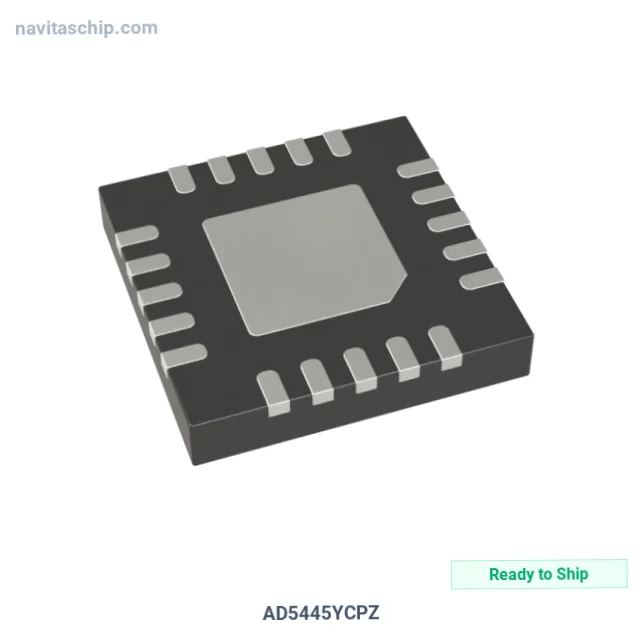

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD5445YCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-996602 |
| Description | IC DAC 12BIT A-OUT 20LFCSP |
| Spec | 20-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 120ns |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | 2.5V ~ 5.5V |
| Voltage - Supply, Digital | 2.5V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), -1/+2 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 20-LFCSP (4x4) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD5445YCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD5445YCPZ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 12bit A-Out in 20-Pin Csp Package, housed in a compact 20-LFCSP (4x4) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad, CSP
- Device Package: 20-LFCSP (4x4)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
