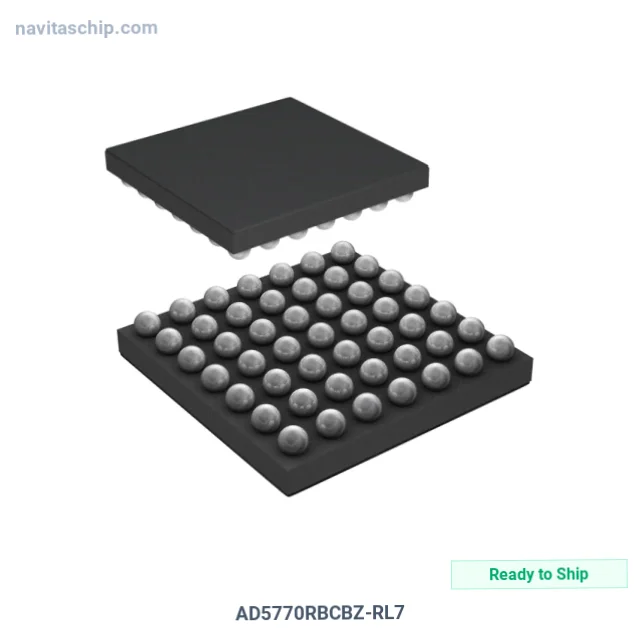

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD5770RBCBZ-RL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-9990314 |
| Description | IC DAC 14BIT A-OUT 49WLCSP |
| Spec | 49-WFBGA, WLCSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 6 |
| Settling Time | 13µs (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | No |
| Data Interface | Serial, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.9V ~ 5.5V |
| Voltage - Supply, Digital | 2.9V ~ 5.5V |
| INL/DNL (LSB) | ±6.5 (Max), ±1 (Max) |
| Architecture | Current Steering |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 49-WLCSP (4.04x4.04) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD5770RBCBZ-RL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD5770RBCBZ-RL7 is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 14bit A-Out 49wlcsp, housed in a compact 49-WLCSP (4.04x4.04) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 49-WFBGA, WLCSP
- Device Package: 49-WLCSP (4.04x4.04)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
