| Manufacturer Product Number | AD5780BCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3043368 |
| Description | IC DAC 18BIT V-OUT 24LFCSP |
| Spec | 24-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 18 |
| Number of D/A Converters | 1 |
| Settling Time | 3.5µs (Typ) |
| Output Type | Voltage - Unbuffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Voltage - Supply, Analog | 7.5V ~ 16.5V, -2.5V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±1 (Max), ±0.75 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 24-LFCSP-VQ (4x5) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD5780BCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

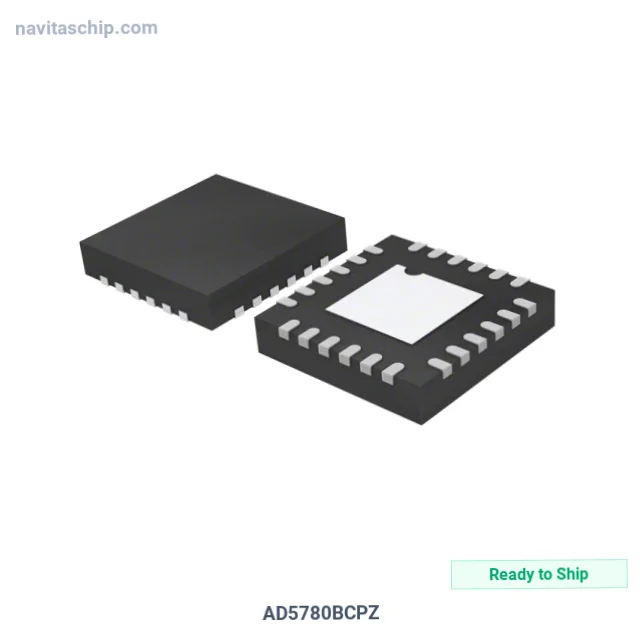

The AD5780BCPZ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 18bit V-Out in 24-Pin Csp Package, housed in a compact 24-LFCSP-VQ (4x5) package.
Key Technical Specifications
- Output Type: Voltage - Unbuffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 24-VFQFN Exposed Pad, CSP
- Device Package: 24-LFCSP-VQ (4x5)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
