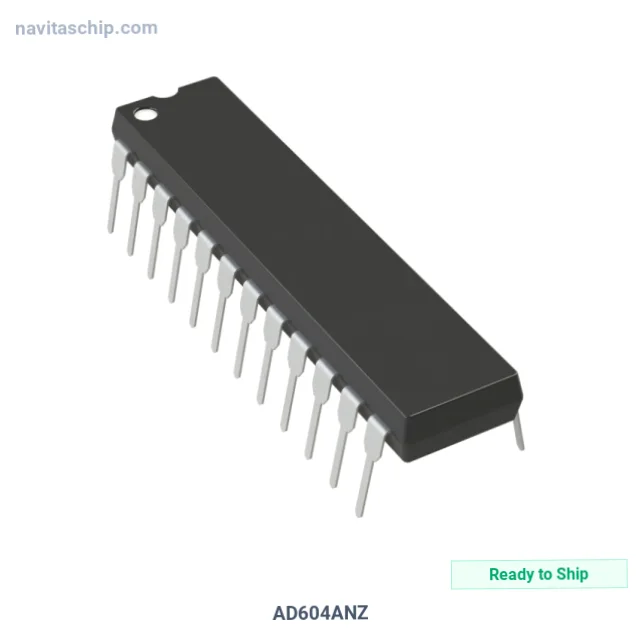

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD604ANZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-997238 |
| Description | IC VARIABLE GAIN 2 CIRCUIT 24DIP |
| Spec | 24-DIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Variable Gain |
| Number of Circuits | 2 |
| Slew Rate | 170V/µs |
| -3db Bandwidth | 40 MHz |
| Current - Input Bias | 400 nA |
| Voltage - Input Offset | 30 mV |
| Current - Supply | 32mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 24-PDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD604ANZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD604ANZ is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Variable Gain 2 Circuit in 24-Pin DIP Package, housed in a compact 24-PDIP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 24-DIP (0.300", 7.62mm)
- Device Package: 24-PDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
