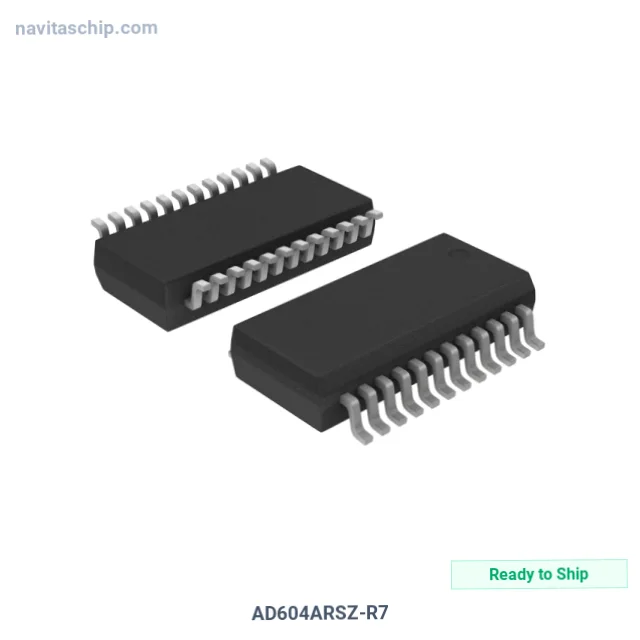

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD604ARSZ-R7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-995525 |
| Description | IC VARIABLE GAIN 2 CIRC 24SSOP |
| Spec | 24-SSOP (0.209", 5.30mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Variable Gain |
| Number of Circuits | 2 |
| Slew Rate | 170V/µs |
| -3db Bandwidth | 40 MHz |
| Current - Input Bias | 400 nA |
| Voltage - Input Offset | 30 mV |
| Current - Supply | 32mA |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD604ARSZ-R7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD604ARSZ-R7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Variable Gain 2 Circ in 24-Pin SSOP Package, housed in a compact 24-SSOP package.
Facing dual-version RoHS and leaded part availability management for industrial customers maintaining 1990s-era production lines? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SSOP (0.209", 5.30mm Width)
- Device Package: 24-SSOP
- RoHS Compliant
Applications
Widely adopted for:
- embedded systems
- CMOS op amp with sub-microampere quiescent current for always-on battery-powered applications
- low-power and micro-power op amp for portable, wearable and energy-harvesting designs
- INA199, INA240 and MAX4376 current sense amplifier replacement for legacy battery management designs
Why Choose NavitasChip for AD604ARSZ-R7?
NavitasChip offers cost-effective alternative to authorized distributors for the AD604ARSZ-R7 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for AD604ARSZ-R7, serving customers in Qatar, Saudi Arabia, and worldwide.
AD604ARSZ-R7 - Request a quote today.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
