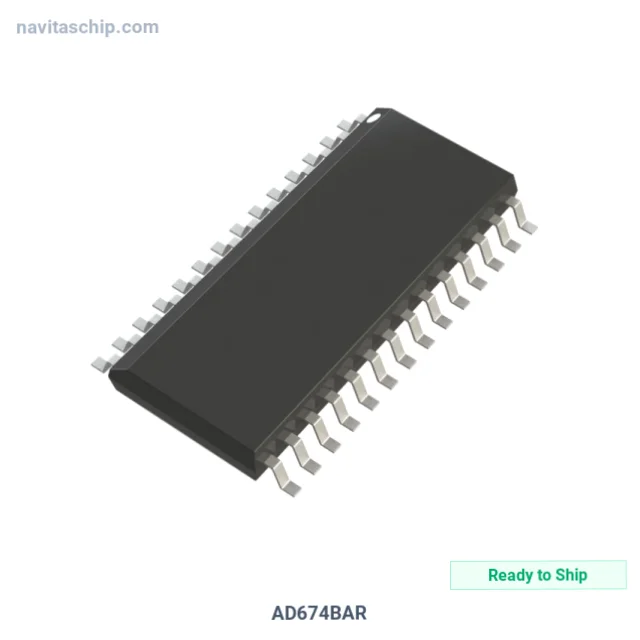

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD674BAR |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-617948 |
| Description | IC ADC 12BIT SAR 28SOIC |
| Spec | 28-SOIC (0.295", 7.50mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Number of Inputs | 2 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±11.4V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 28-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD674BAR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD674BAR is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Sar in 28-Pin SOIC Package, housed in a compact 28-SOIC package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-SOIC (0.295", 7.50mm Width)
- Device Package: 28-SOIC
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
