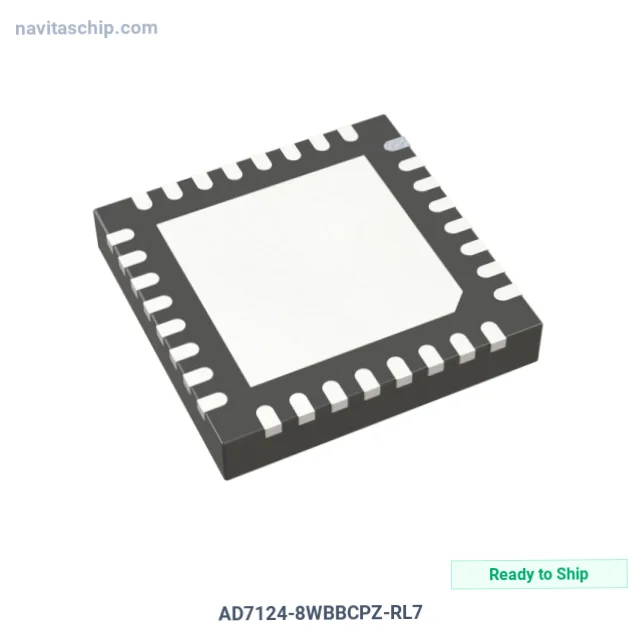

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7124-8WBBCPZ-RL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-21379886 |
| Description | AD7124-8 8CH 24B ADC |
| Spec | 32-VFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 19.2k |
| Number of Inputs | 8, 15 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | 3-Wire Serial, 4-Wire Serial, DSP, MICROWIRE, QSPI, SPI |
| Configuration | MUX-PGA-ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, ±1.8V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 32-LFCSP (5x5) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7124-8WBBCPZ-RL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7124-8WBBCPZ-RL7 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Ad7124-8 8-Channel 24b Analog-To-Digital Converter, housed in a compact 32-LFCSP (5x5) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad, CSP
- Device Package: 32-LFCSP (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
