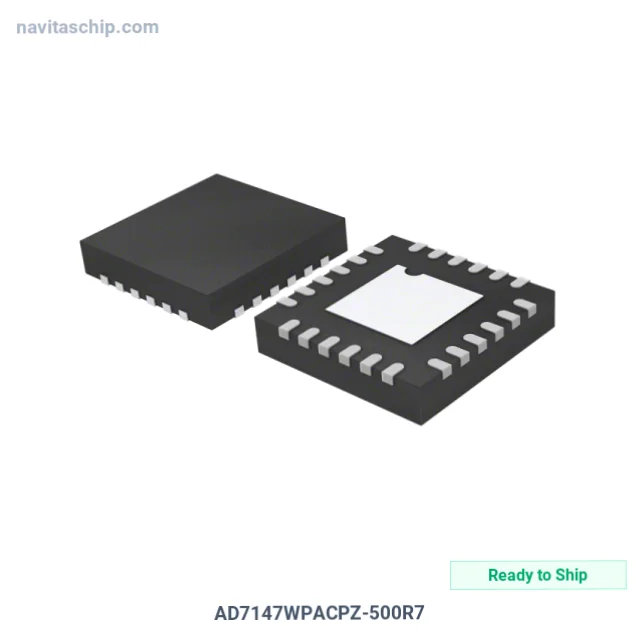

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7147WPACPZ-500R7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2700116 |
| Description | IC CAP TO DGT 16BIT 250K 24LFCSP |
| Spec | 24-WFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 13 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 250k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.6V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Grade | Automotive |
| Supplier Device Package | 24-LFCSP (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7147WPACPZ-500R7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7147WPACPZ-500R7 is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Cap to Dgt 16bit 250k in 24-Pin Csp Package, housed in a compact 24-LFCSP (4x4) package, with 2.6V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.6V ~ 3.6V
- Channels: 13
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-WFQFN Exposed Pad, CSP
- Device Package: 24-LFCSP (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
