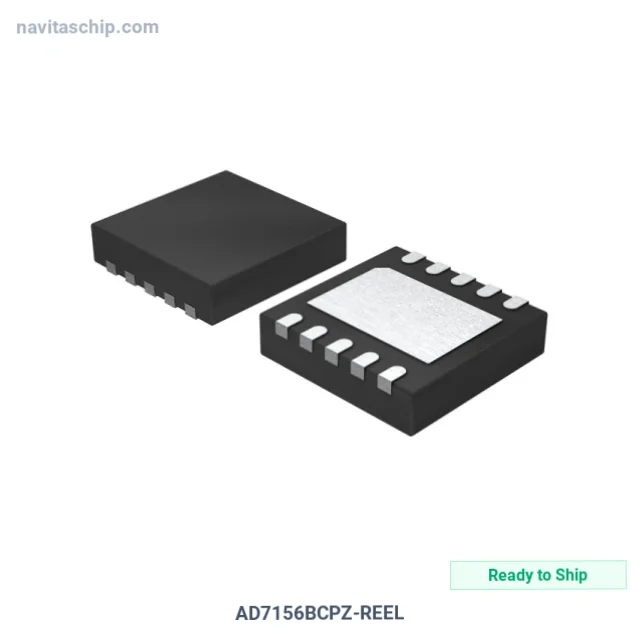

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7156BCPZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1981870 |
| Description | IC CAP TO DGT 12BIT 100K 10LFCSP |
| Spec | 10-VFDFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Capacitance-to-Digital Converter |
| Number of Channels | 2 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 10-LFCSP-WD (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7156BCPZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7156BCPZ-REEL is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Cap to Dgt 12bit 100k in 10-Pin Csp Package, housed in a compact 10-LFCSP-WD (3x3) package, with 1.8V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.8V ~ 3.6V
- Channels: 2
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 10-VFDFN Exposed Pad, CSP
- Device Package: 10-LFCSP-WD (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
