| Manufacturer Product Number | AD7291BCPZ-RL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2623612 |

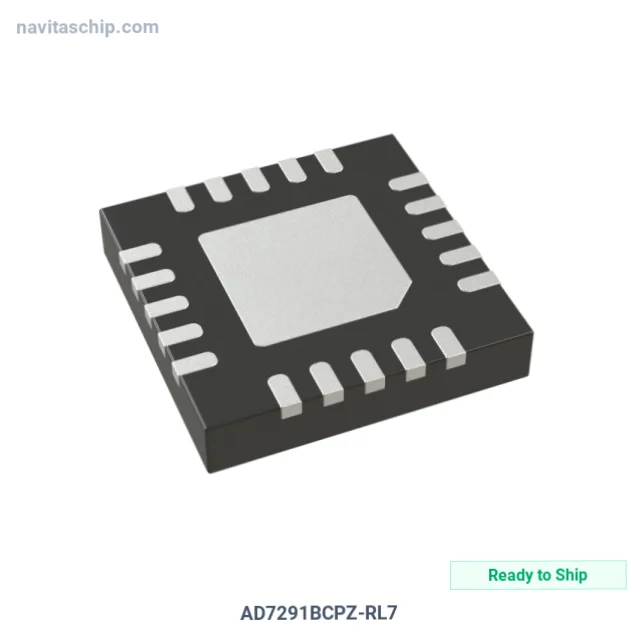

| Description | IC ADC 12BIT SAR 20LFCSP |
| Spec | 20-WFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 22.22k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | I2C |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.8V ~ 3.6V |
| Voltage - Supply, Digital | 2.8V ~ 3.6V |
| Features | Selectable Address, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 20-LFCSP (4x4) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7291BCPZ-RL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7291BCPZ-RL7 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Sar in 20-Pin Csp Package, housed in a compact 20-LFCSP (4x4) package.
In today's market, hard-to-find Linear LTC and Maxim MAX legacy ADC with original date codes and traceability can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad, CSP
- Device Package: 20-LFCSP (4x4)
- RoHS Compliant
Applications
Engineered specifically for:
- IoT devices
- 16-bit and 18-bit high-resolution ADC for instrumentation and process control
- low-noise high-SNR analog acquisition with internal anti-aliasing filtering
- test and measurement instrumentation and bench data acquisition equipment
- portable battery-powered handheld instrumentation and field test equipment
Why Choose NavitasChip for AD7291BCPZ-RL7?
NavitasChip offers global surplus sourcing network for the AD7291BCPZ-RL7 and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer AD7291BCPZ-RL7 with flexible routing options.
AD7291BCPZ-RL7 - Contact our sales team.
