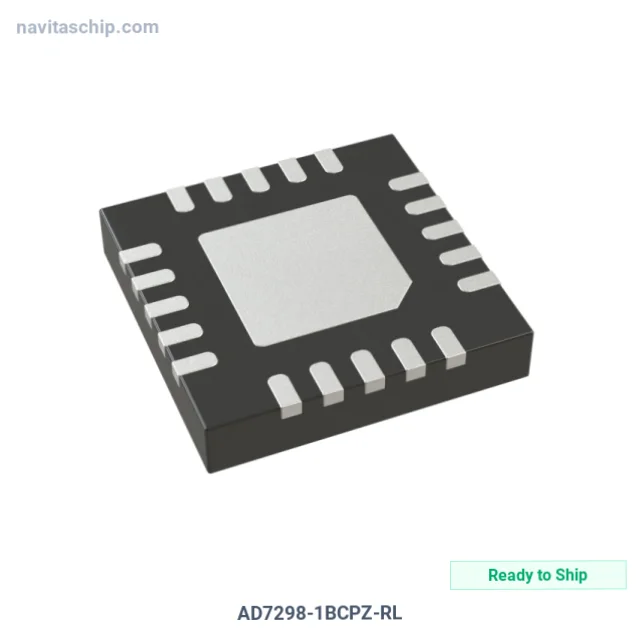

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7298-1BCPZ-RL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2606624 |
| Description | IC ADC 10BIT SAR 20LFCSP |
| Spec | 20-WFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.8V ~ 3.6V |
| Voltage - Supply, Digital | 2.8V ~ 3.6V |
| Features | Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 20-LFCSP (4x4) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7298-1BCPZ-RL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7298-1BCPZ-RL is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 10bit Sar in 20-Pin Csp Package, housed in a compact 20-LFCSP (4x4) package.
In today's market, long factory lead times can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad, CSP
- Device Package: 20-LFCSP (4x4)
- RoHS Compliant
