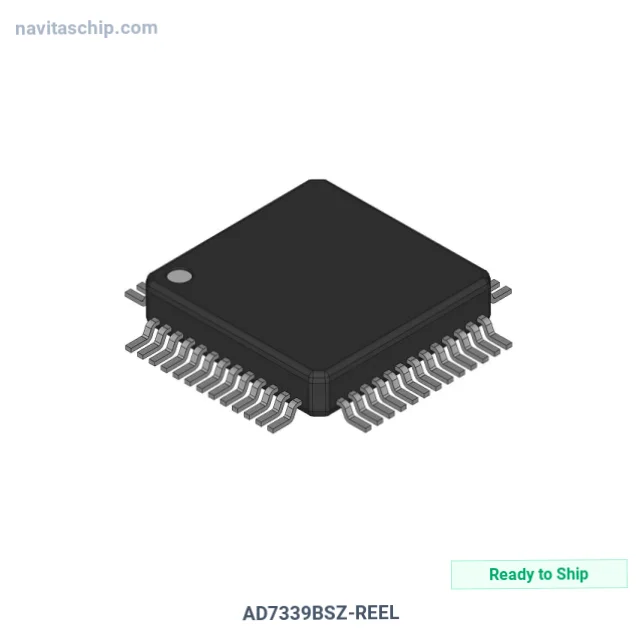

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7339BSZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-15645205 |
| Description | AD7339 - INTEGRATED HIGH SPEED A |
| Spec | 52-QFP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | ADC, DAC |
| Number of Channels | 2 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 2M |
| Data Interface | Serial, Parallel |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 52-MQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7339BSZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7339BSZ-REEL is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Ad7339 - Integrated High Speed A, housed in a compact 52-MQFP (10x10) package, with 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 5V
- Channels: 2
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 52-QFP
- Device Package: 52-MQFP (10x10)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
