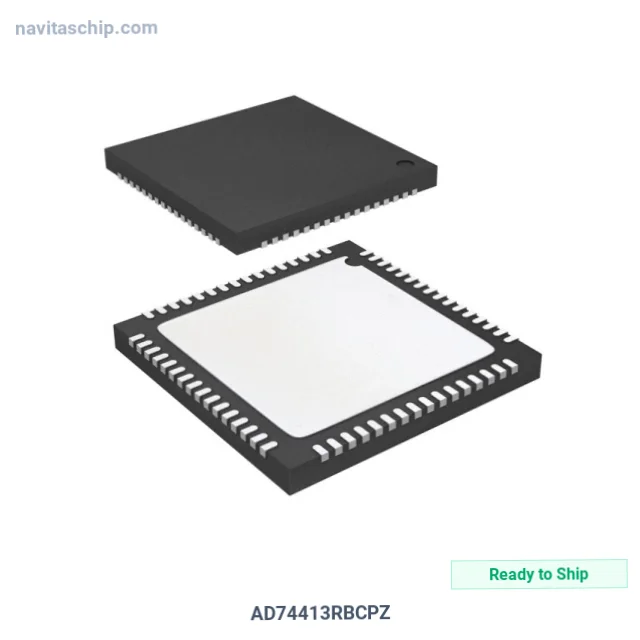

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD74413RBCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11501289 |
| Description | IC SOFTW CONF 16BIT 4.8K 64LFCSP |
| Spec | 64-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Software Configurable Input/Output |
| Number of Channels | 4 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 4.8k |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 14V ~ 26.4V, 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LFCSP (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD74413RBCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD74413RBCPZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Softw Conf 16bit 4.8k in 64-Pin Csp Package, housed in a compact 64-LFCSP (9x9) package, with 14V ~ 26.4V, 2.7V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 14V ~ 26.4V, 2.7V ~ 5.5V
- Channels: 4
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 64-WFQFN Exposed Pad, CSP
- Device Package: 64-LFCSP (9x9)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
